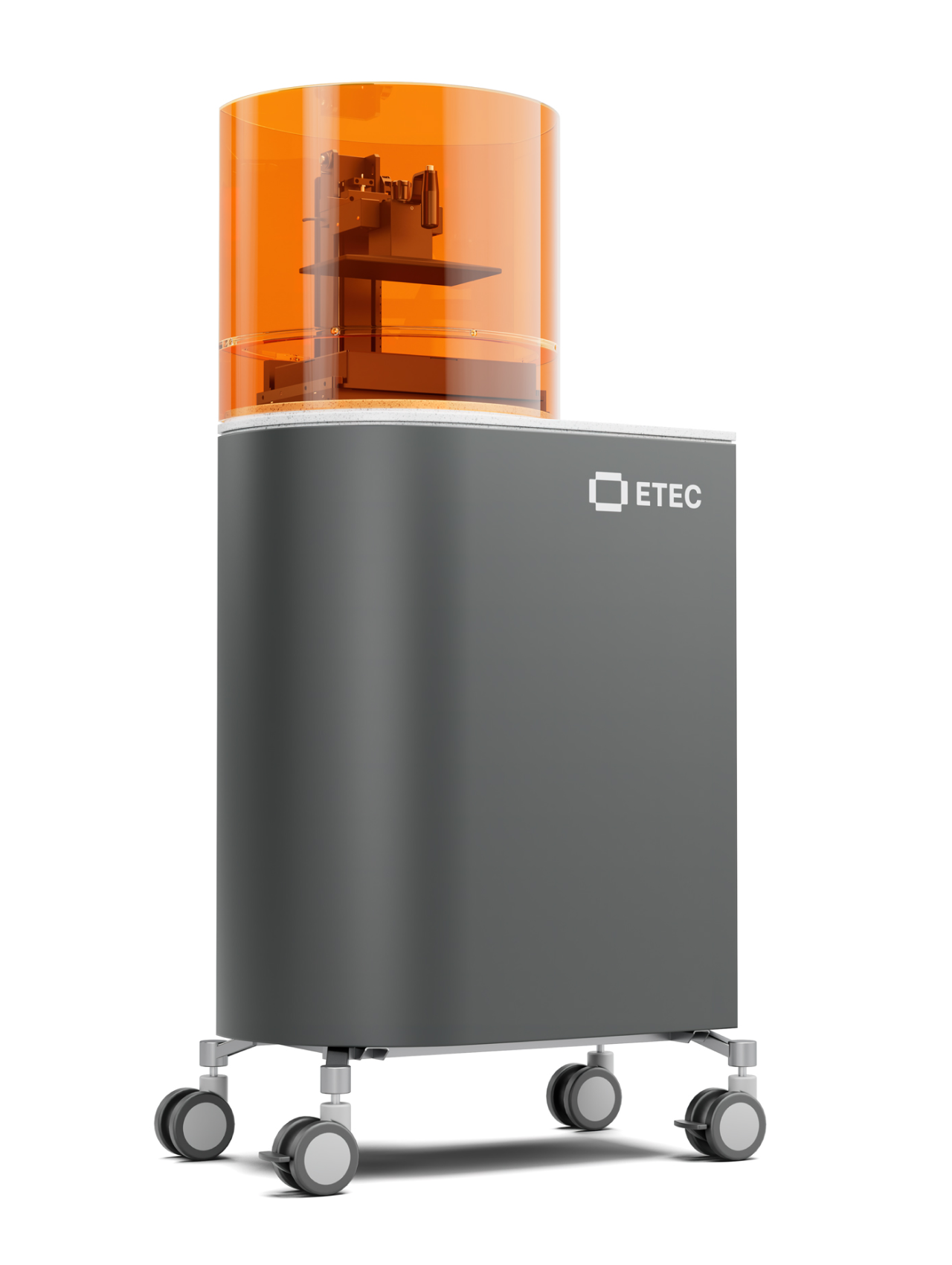

Introducing the only DLP-based 3D printers utilizing a true 4M pixel projector with UV optics tuned to 385nm wavelength. The P4K Series (P4K 35, P4K 62, P4K 75 and P4K 90) delivers the highest accuracy coupled with the highest finished product functionality. Utilizing Artificial Intelligence (AI) in pixel tuning to deliver extremely high quality surface finish, the P4K delivers next generation advanced DLP technology in 3D printing. It creates 3D models that range from the conceptual to the fully functional.

Categories: , Tag:


The P4K is the opposite of other, one-size-fits-all 3D printing solutions. With a range of models available, users can choose their optical configuration based on part size, feature-size requirements and throughput, and tailor a solution that best suits their needs. With resolutions of between 23µm-90µm on the X and Y axes, the P4K can easily produce detailed parts in a range of sizes.

Designed for a 24/7 production environment, the P4K can run lights-out, with little to no user intervention required. Easily print parts at volume with the quality, surface finish and tolerances needed for end-use applications.

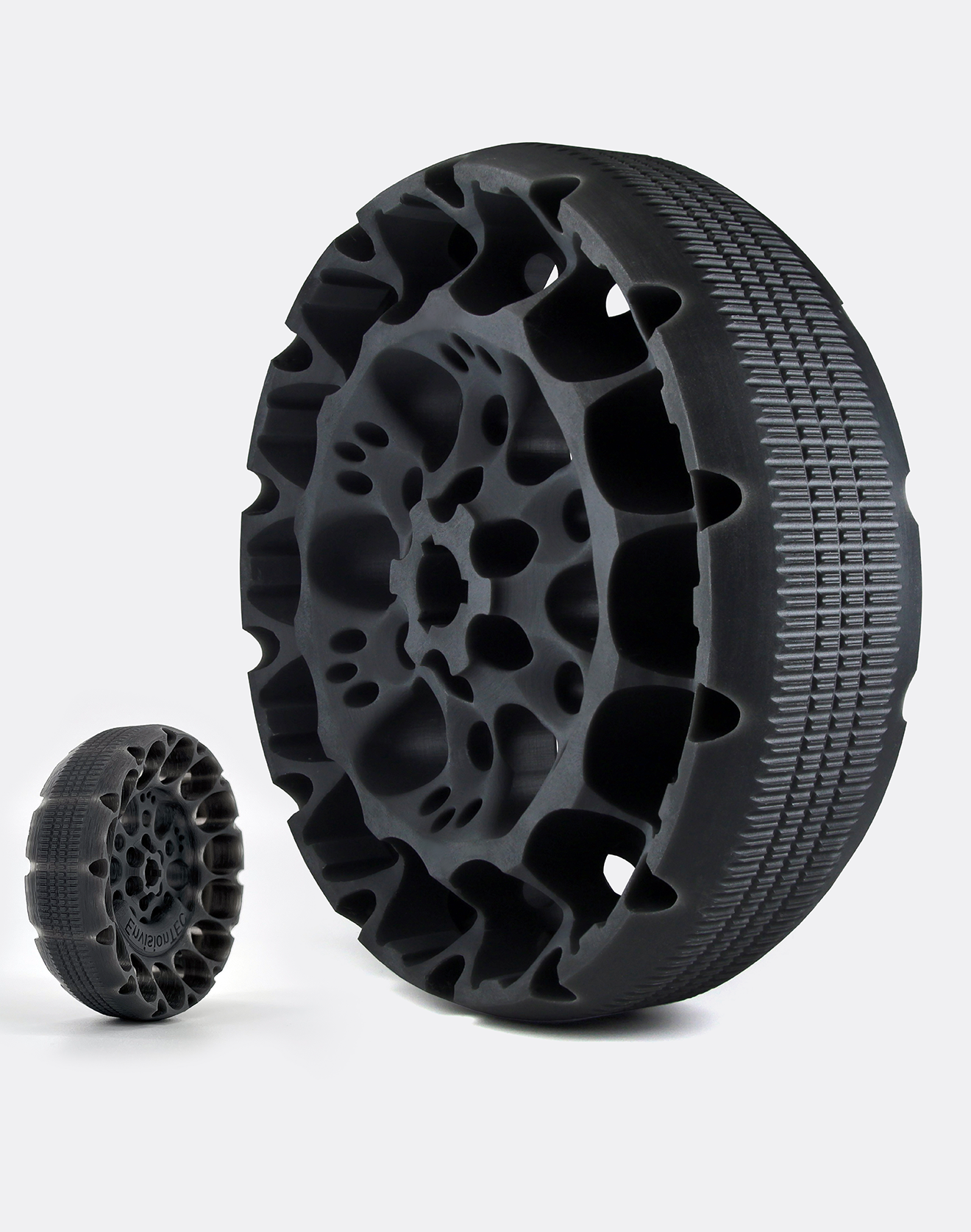

With resolutions of between 23µm-90µm on the X and Y axes, the P4K can easily produce detailed parts in sizes ranging from just 2mm – smaller than two grains of sand – to 230mm – about the size of 3 credit cards stacked end to end.


  • Economic material use with no vat
  • Minimized components make the system user serviceable
  • Designed to run 24/7 in a production environment
  • Delivered with all relevant software to enable automatic support generation and perfect model production

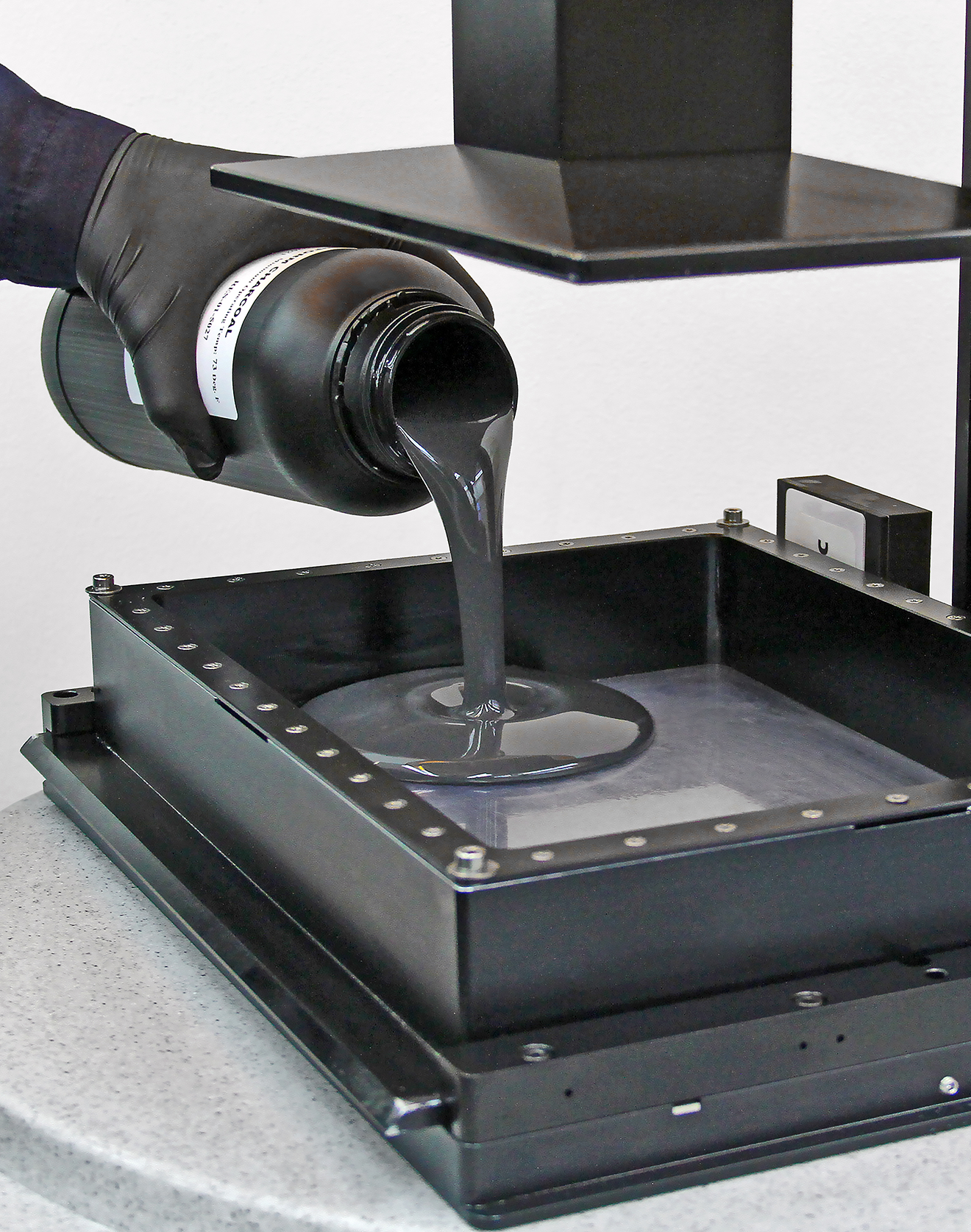

  • Material changeover can be done quickly and easily
  • Available in four models, each of which features a different resolution, ensuring users get the print quality that best suits their application. Native pixel sizes XY: 35, 62, 75, 90 um
  • 190+ Materials available

Additional information


Aftermarket & Replacement Parts, Art & Popular Culture, Biocompatible certified Class I materials, Casting, CE certified, CE Certified Materials, Class I medical device, Class-IIa biocompatible / ISO 10993, Color & Marketing Validation, Concept Modeling, Dimensional Accuracy, Display & Visualization, Elastomeric Structures, Ergonomics, FDA Approved, Finite element analysis (FEA), Hot / Cold Molding, Housings & Covers, Injection Molding, Jigs & Fixtures, Masks & Plugs, Molds, Production Parts, Props & Costumes, Prototypes, Reverse Engineering, Small & Medium Run Manufacturing, Snap Fit & Live Hinges, Tooling


Aerospace, Architecture & Design, Automotive, Construction, Consumer & Durable Goods, Education, Engineering, Entertainment & Art, Fashion & Jewelry, Government & Defense, Healthcare & Medical, Manufacturing, Prototyping & Modeling, Research & Development

Material Characteristics

Chemical Resistance, Cold Resistance, Flexibility, Heat Resistance, High Compression Strength, High Detail, High Shear Strength, High Strength, High Tensile Strength, Humidity & Moisture Resistance, Impact Resistance, Low Ash Burnout, Rigidity, Superior Surface Finish, UV Resistance, Water Resistance

Technology Type

Continuous Digital Light Manufacturing (cDLM), Digital Light Printing (DLP), Stereolithography (SLA), Vat Photopolymerization

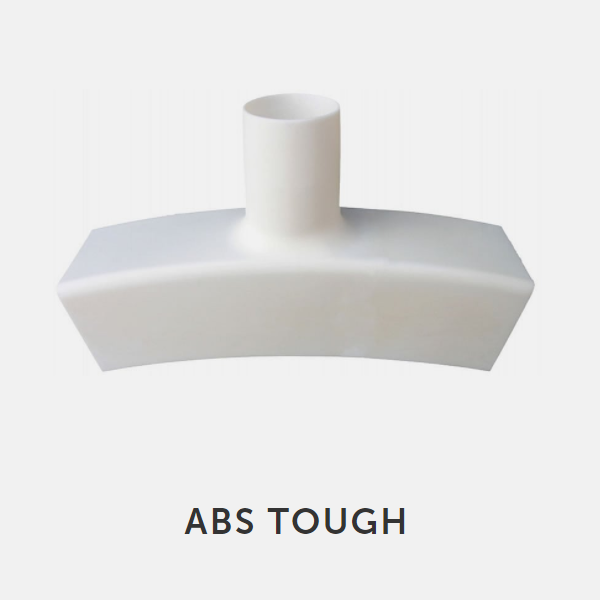

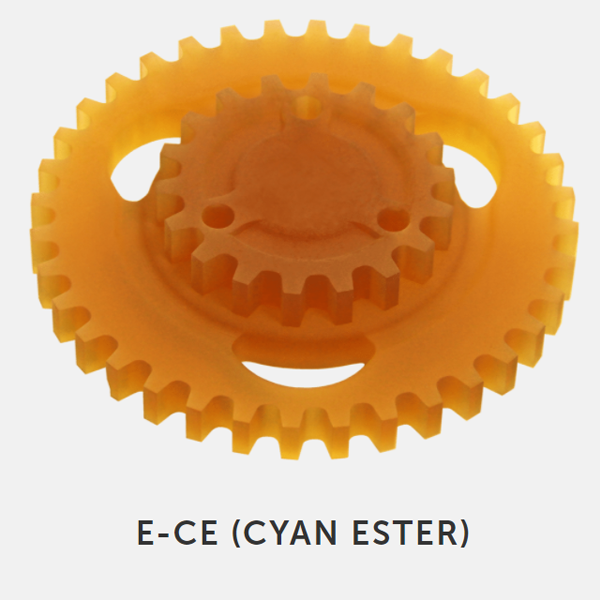

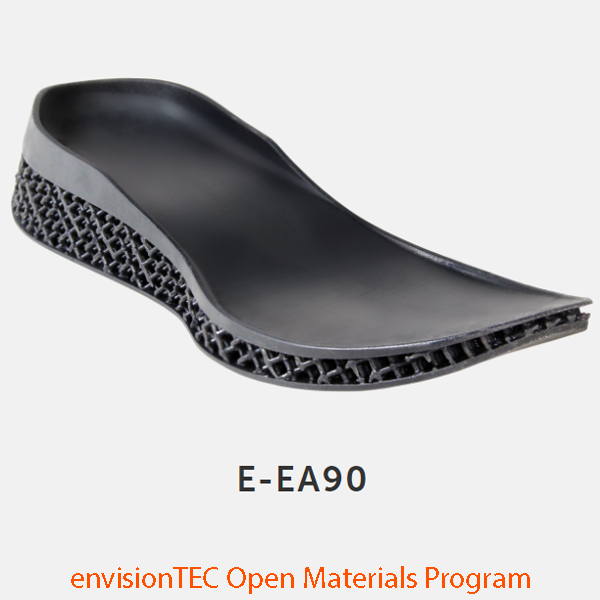

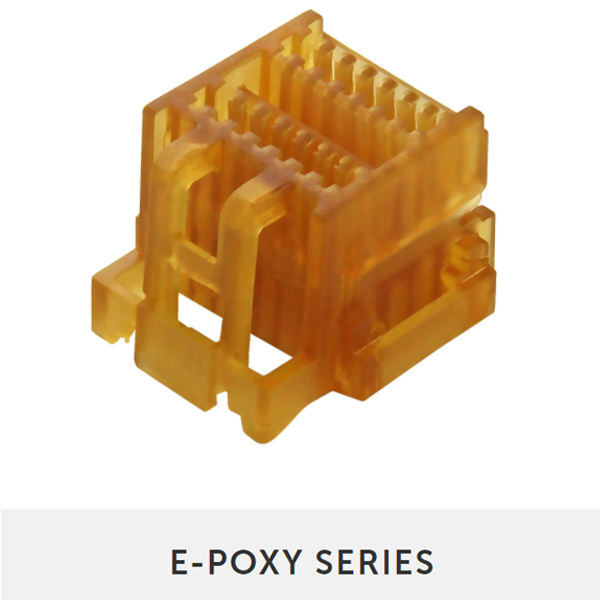

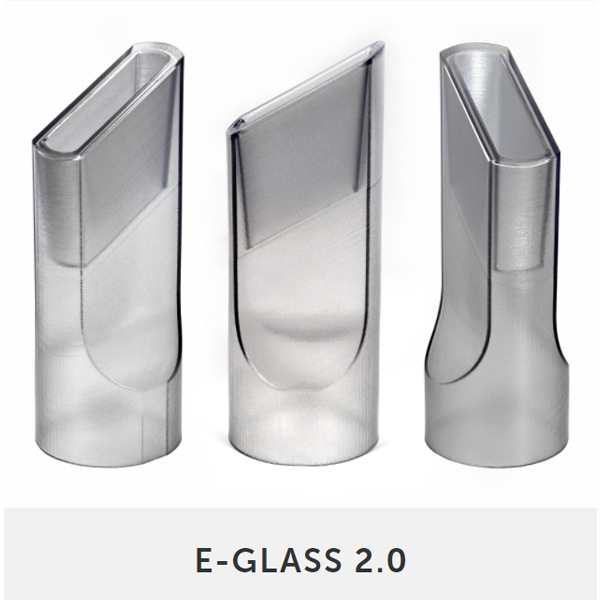

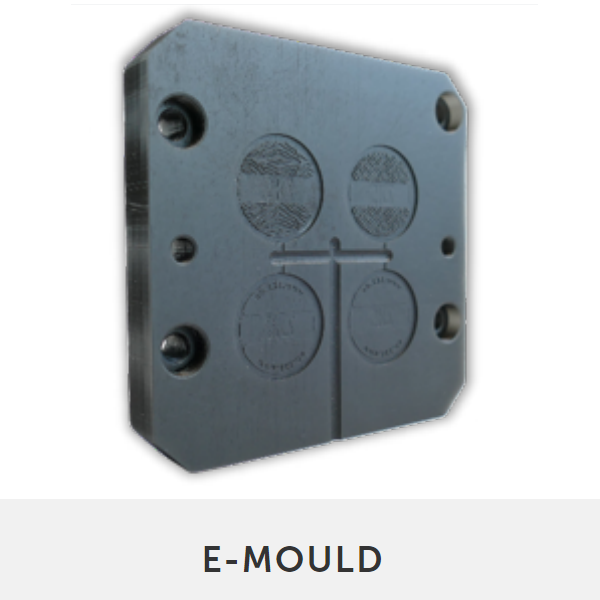

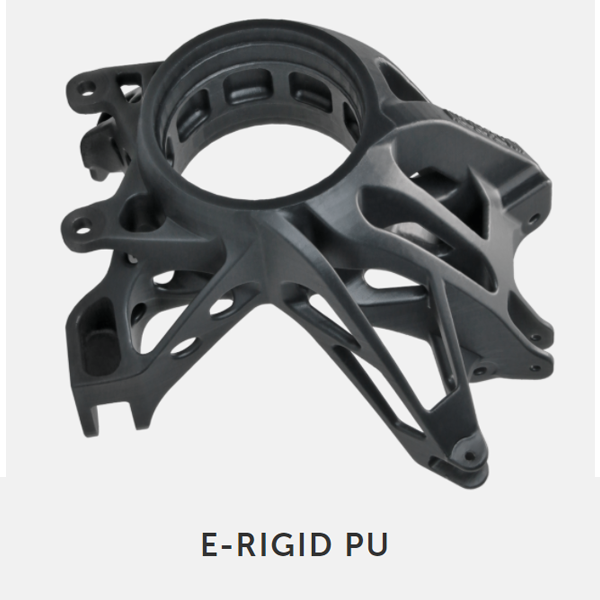

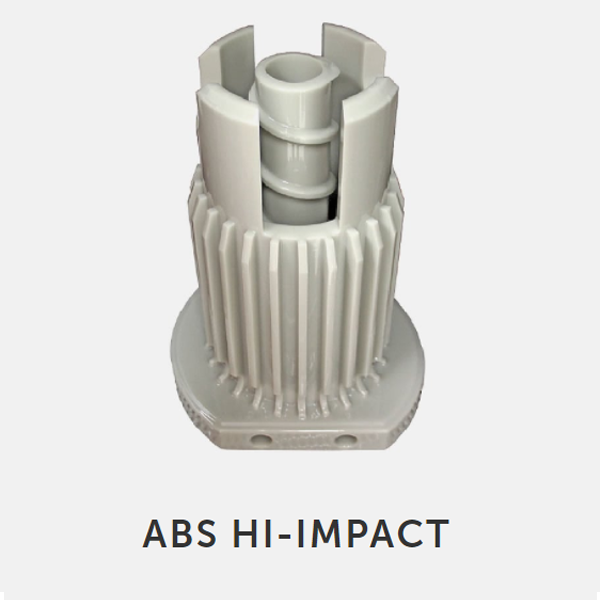

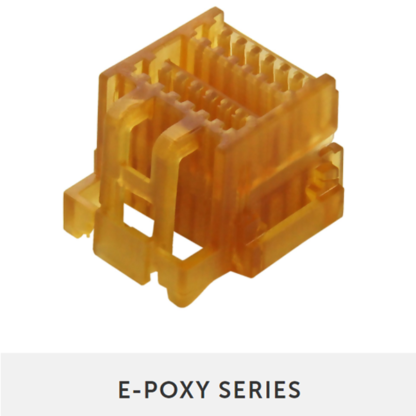

ABS Flex White, ABS High Impact, ABS Tough, E-CE (Cyan Ester), E-Clear Series, E-Denstone, E-EA90, E-Glass 2.0, E-Guard, E-Guide Tint, E-Gum, E-IDB, E-Model, E-MOULD, E-OrthoShape, E-Partial, E-POXY Series, E-Rigid PU, E-RigidForm, E-SEPFREE




P4K 35

P4K 62

P4K 75

P4K 90

Build Envelope(s) – Version


90 x 56 x 180

160 x 100 x 180 mm

192 x 120 x 180 mm

230 x 143.75 x 180 mm

Native Pixel Size(s) XY – Version 35 µm

62 µm

75 µm

90 µm

Pixel Size With ERM – Version






Dynamic Voxel Resolution in Z 25 – 150 µm, material dependent
Projector Resolution 2560 x 1600 (WZXGA)
Data Handling STL
Warranty 1 Year Included
Footprint(s) – Version 73 x 48 x 135 cm

73 x 48 x 160 cm

Electrical Requirements 100-120, 5.4 Amp or 220-240V, 2.4 Amp

Request Price

Contact us for pricing and order information.
