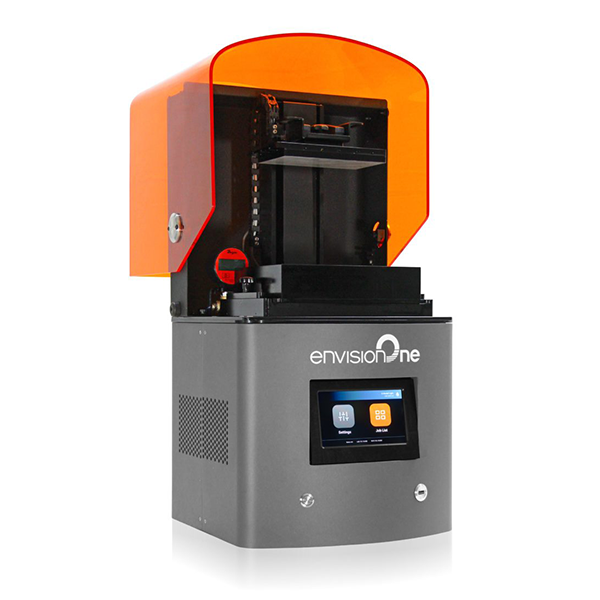

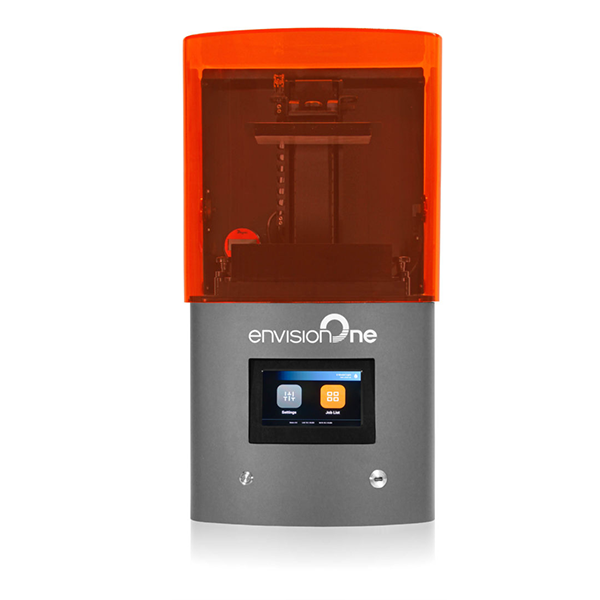

envisionTEC Envision ONE cDLM Mechanical

The Envision ONE cDLM Mechanical is designed to take you from beginner to expert in a single machine that delivers accurate parts with minimal supports.

Price w/1 year warranty $22,700.00
Contact us for current packages

Categories: , Tag:

Description

Created by one of the most experienced teams of engineers in 3D printing, the Envision One cDLM Mechanical is an advanced desktop 3D printer. It is bigger, faster, easier to use and in many ways more innovative than comparable 3D printers on the market.

Designed to take you from beginner to expert in a single machine, the Envision One cDLM delivers an end to end solution including design software parameter optimization to deliver accurate parts every time, with minimal supports. Perfect for a wide variety of 3D printing applications, the Envision One cDLM is capable of printing up to 45 mm/hour, material dependent.

Features

  • Layerless technology delivers super smooth models.
  • 75% less supports compared to regular DLP printers.
  • Domeless technology delivers the highest accuracy in Z.
  • High-resolution industrial projector with UV glass.
  • LED light source at 385 nm wavelength for higher accuracy on clear parts and crisper details across all parts.
  • Dual linear slides provide superior stability during build process, eliminating any shifting in parts.

Additional information

Application

Aftermarket & Replacement Parts, Art & Popular Culture, Casting, CE certified, CE Certified Materials, Concept Modeling, Dimensional Accuracy, Display & Visualization, Elastomeric Structures, Ergonomics, Hot / Cold Molding, Housings & Covers, Injection Molding, Jigs & Fixtures, Masks & Plugs, Molds, Production Parts, Props & Costumes, Prototypes, Reverse Engineering, Small & Medium Run Manufacturing, Snap Fit & Live Hinges, Tooling

Industry

Aerospace, Architecture & Design, Automotive, Construction, Consumer & Durable Goods, Education, Engineering, Entertainment & Art, Fashion & Jewelry, Government & Defense, Healthcare & Medical, Manufacturing, Prototyping & Modeling, Research & Development

Material Characteristics

Chemical Resistance, Cold Resistance, Flexibility, Heat Resistance, High Compression Strength, High Detail, High Shear Strength, High Strength, High Tensile Strength, Humidity & Moisture Resistance, Impact Resistance, Low Ash Burnout, Rigidity, Superior Surface Finish, UV Resistance, Water Resistance

Technology Type

Continuous Digital Light Manufacturing (cDLM), Stereolithography (SLA), Vat Photopolymerization

Material

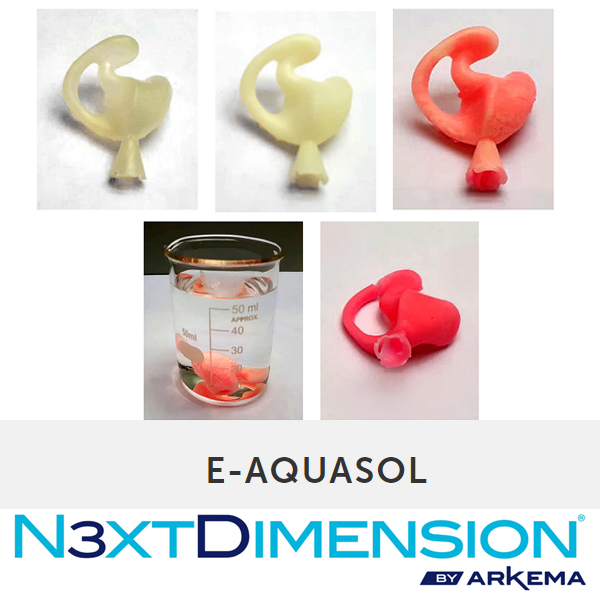

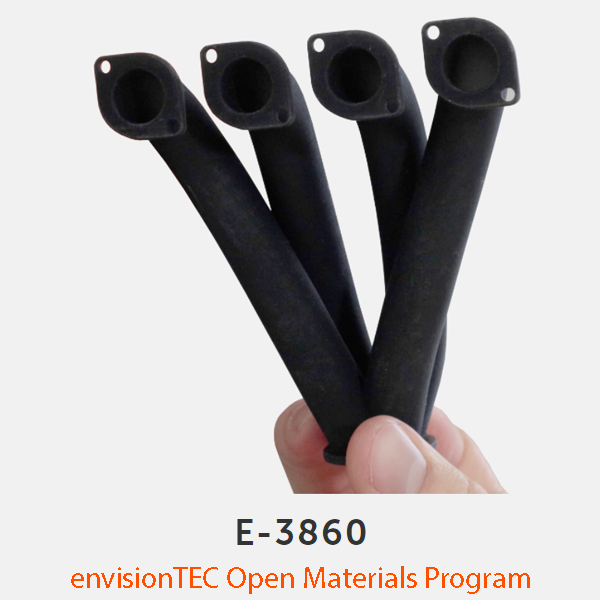

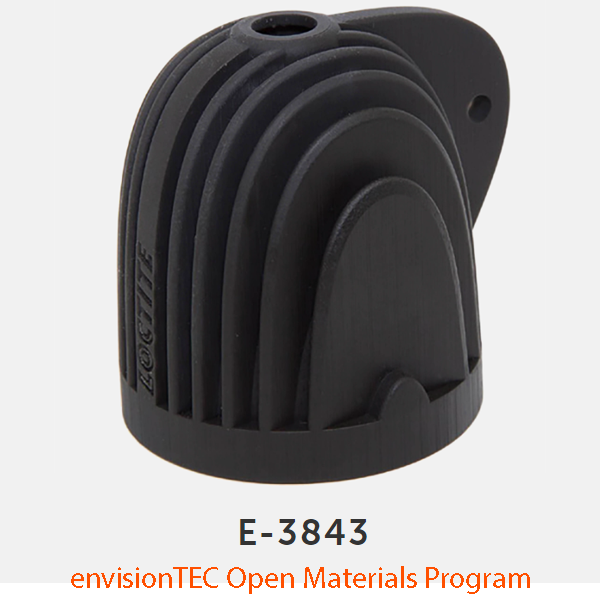

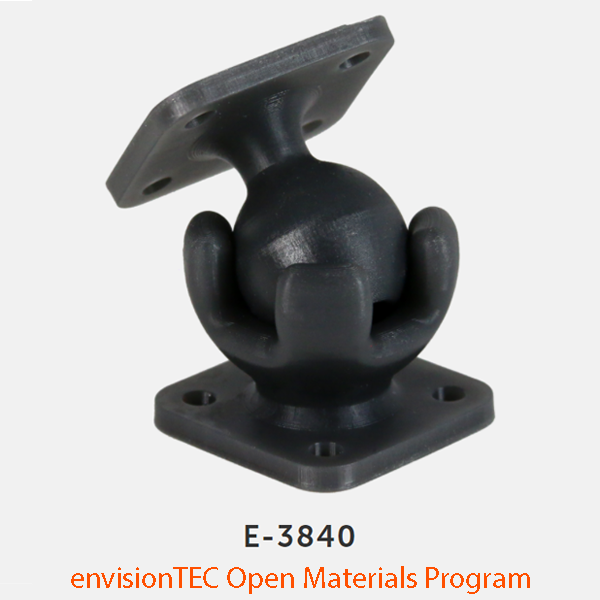

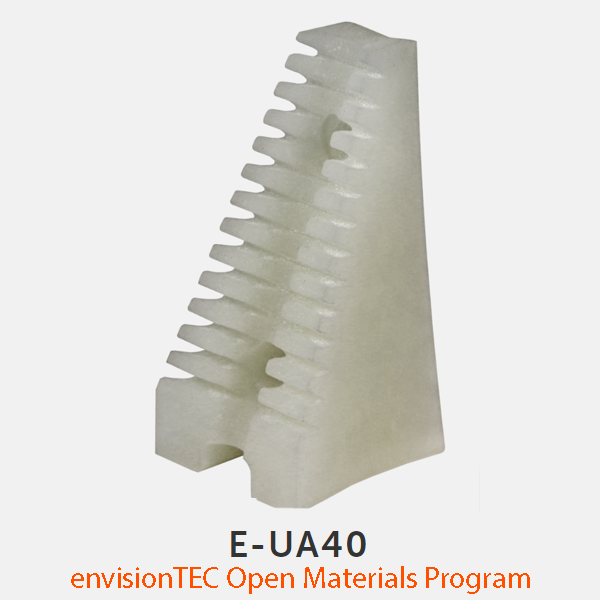

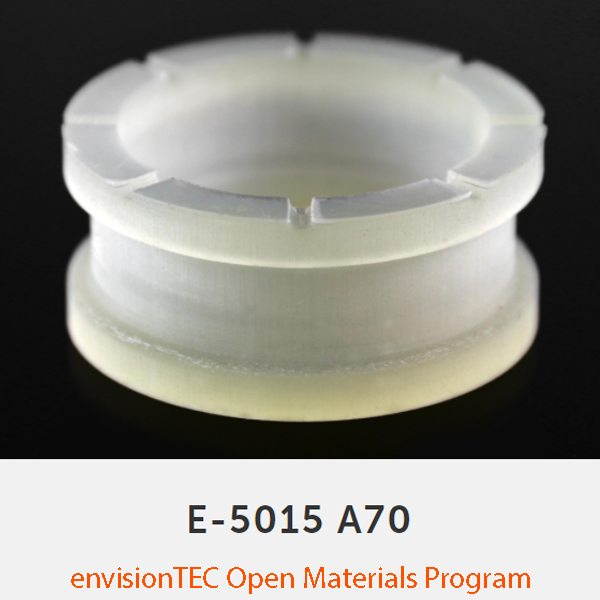

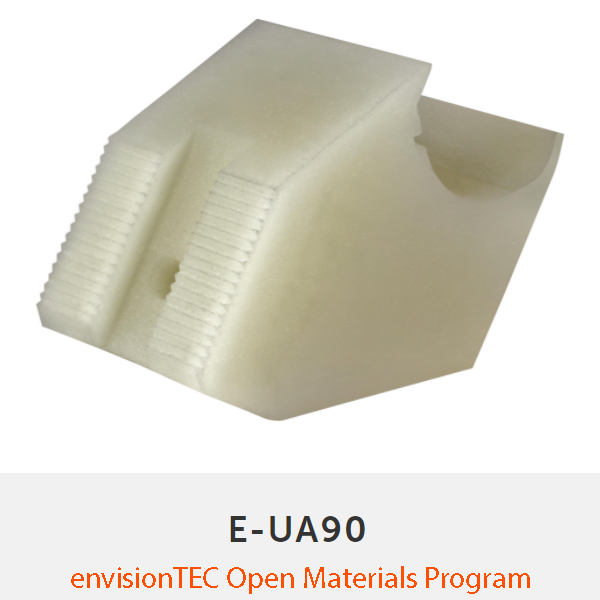

ABS Tough, E-3840, E-3843, E-3860, E-5015 A70, E-AQUASOL, E-MOULD, E-Rigid PU, E-RigidForm, E-UA40, E-UA90

Specifications

Build Envelope 180 x 101 x 175 mm (7.09 x 3.98 x 6.9 in.)
Build Speed Up to 45 mm/hour, material dependent
Native XY Resolution 93 µm
XY Resolution with Contour Gray Scaling 60 µm
Dynamic Z Resolution 50 µm to 150 µm, material dependent
Data Handling STL
Warranty 1 year back to factory included
Footprint 39.1 x 43 x 63.6 cm (15.4 x 16.93 x 25.02 in.)
