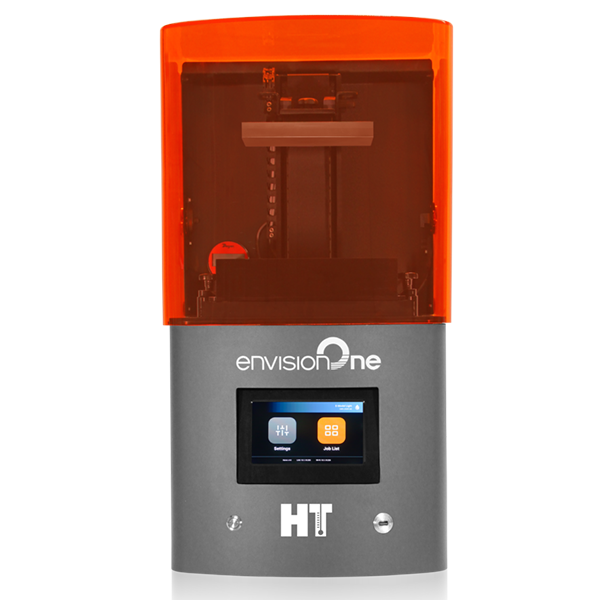

envisionTEC Envision ONE cDLM HT

EnvisionTEC’s Envision ONE cDLM HT (High Temperature) has a heated build platform and tray enabling a new generation of chemistry for end-use parts. EnvisionTEC is a long time industry leader and global provider of professional-grade 3D printing solutions. See tabs below for details and case studies.

Price w/1 year warranty $56,000.00
Contact us for Current packages.

Categories: , Tag:


Created by one of the most experienced teams of engineers in 3D printing, the Envision One cDLM HT (High Temperature) is an advanced version of the largest, most advanced desktop 3D printer ever created.  Utilizing a highly accurate infared heating system for the resin in the material tray and a heated build platform, the Envision One HT delivers the first commercial Continuous Digital Light Manufacturing (cDLM) system that allows for the processing and 3D printing of a new generation of chemistry that promises to deliver end-use parts.  EnvisionTEC technology allows for continuous monitoring of build data during production, while sophisticated software constantly optimized the build for consistently accurate results every time.


  • Zero separation forces
  • Layerless technology delivers super smooth models
  • Domeless technology delivers the highest accuracy in Z
  • Closed loop temperature controller
  • 75% less supports compared to regular DLP Printers
  • High-resolution industrial projector with UV glass
  • LED light source at 385nm wavelength for higher accuracy on clear parts and crisper details across all parts

Additional information


Aftermarket & Replacement Parts, CE certified, CE Certified Materials, Dimensional Accuracy, Housings & Covers, Jigs & Fixtures, Production Parts, Prototypes, Small & Medium Run Manufacturing, Snap Fit & Live Hinges, Tooling, UL94 V-0


Aerospace, Automotive, Construction, Consumer & Durable Goods, Engineering, Government & Defense, Manufacturing, Prototyping & Modeling, Research & Development

Material Characteristics

Chemical Resistance, Cold Resistance, Flame Retardance, Flexibility, Heat Resistance, High Compression Strength, High Detail, High Shear Strength, High Strength, High Tensile Strength, Humidity & Moisture Resistance, Impact Resistance, Rigidity, UV Resistance, Water Resistance

Technology Type

Continuous Digital Light Manufacturing (cDLM), Stereolithography (SLA), Vat Photopolymerization


E-3955 FST HH


Build Envelope 180 x 101 x 175 mm (7.09 x 3.98 x 6.9 in.)
Build Speed Up to 120 mm/hour, material dependent
Native XY Resolution 93 µm
XY Resolution with Contour Gray Scaling 60 µm
Dynamic Z Resolution 50 µm to 150 µm, material dependent
Build Platform Temperature Adjustable from room temperature to 100°C
Material Tray Resin Temperature Adjustable from room temperature to 75°C
Data Handling STL
Warranty 1 year back to factory included
Footprint 39.1 x 43 x 63.6 cm (15.4 x 16.93 x 25.02 in.)
