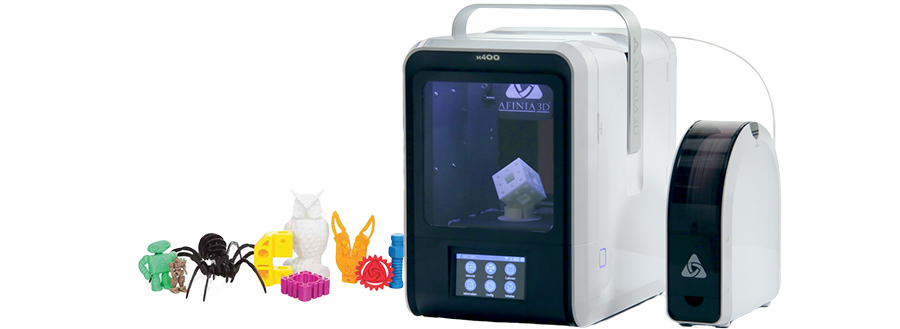

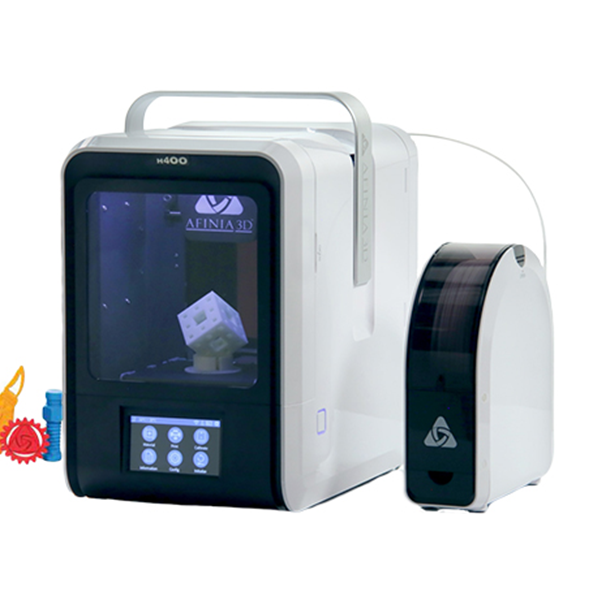

Afinia H400+

The new Afinia H400+ 3D printer is the ultimate in affordability, reliability, and simplicity. It’s perfect for educators, hobbyists, and engineers who want to start 3D printing out-of-the-box and hassle free.

Categories: , Tag:

Description

The new Afinia H400+ 3D printer is the ultimate in affordability, reliability, and simplicity. It’s perfect for educators, hobbyists, and engineers who want to start 3D printing out-of-the-box and hassle free.

Printing technology  MEM  (Melted Extrusion Modelling)
Extruder Single
Nozzle diameter 0.4mm
Extruder maximum temperature 299℃
Extruder maximum travel speed 150 mm/sec
XYZ accuracy 2, 2, 2 micron
Connectivity USB cable, Wi-Fi, LAN and USB Stick
Touch screen 4.3″ Full-color LCD Touchscreen
Build volume 120 × 120 × 120 mm (4.7” x 4.7” x 4.7”)(XYZ)
Printed object accuracy ±0.15 mm/100 mm
Layer resolution 0.15/0.2/0.25/0.3/0.35 mm
Build plate maximum temperature 70℃
Calibration and levelling Automatic Nozzle Height, Software-Assisted
Build plate surface UP Perf and Flex, Heated
Pause to change filament type Yes
Filament ABS, PLA, and more
Filament diameter 1.75mm
Filament spool compatibility 500g

Software

Bundled Software: Afinia Studio
Supported OS Windows 7 (SP1) or higher (32 bit and 64 bit)
Mac OS 10.10
Hardware requirements OpenGL 2.0
At least 4GB of RAM
Importable file formats .up3, .ups, .tsk, .stl, .obj, .3mf, .ply, .off, .3ds, .gcode
Preview support structures Yes
Editable support structures Yes
Cloud print settings Yes

Mechanical

Power supply: 100-240 VAC,50-60 Hz,90 W
Chassis: Metal frame with plastic case, enclosed
Weight: 17.36 lbs (8kg)
Dimensions: 19.1″ x 20.5″ x 19.5″
255 × 365 × 385mm

*What’s Included:

  • Afinia H400+
  • Afinia external spool holder
  • Afinia H400+ extruder
  • Afinia power supply 90W & power cable
  • Afinia Flex board (2)
  • Perf board (2)
  • 500g spool of ABS filament (1.75mm)
  • Quick Start Guide
  • Tool kit: calibration card, filament guide tube, USB cable, spare nozzle and nozzle wrench, gloves, scraper, pliers, hex wrench, and spare screws

Additional information

Weight 288 oz
Application

Art & Popular Culture, Display & Visualization, Jigs & Fixtures, Props & Costumes, Prototypes

Industry

Architecture & Design, Education, Entertainment & Art, Prototyping & Modeling

Technology Type

Fused Filament Fabrication (FFF/FDM)

Material

ABS, PLA, and more

Request Price

Contact us for pricing and order information.
